A standard adult manual wheelchair is about 26 inches (66 cm) wide, 42 inches (107 cm) long, and 35–36 inches (89–91 cm) tall. The seat is usually 18 inches (46 cm) wide.
No law sets one “standard” size, so numbers shift by brand and type. This guide uses real manufacturer specs. You get wheelchair dimensions by seat size, how to measure, and the door and turning space rules for US homes.
Table of Contents

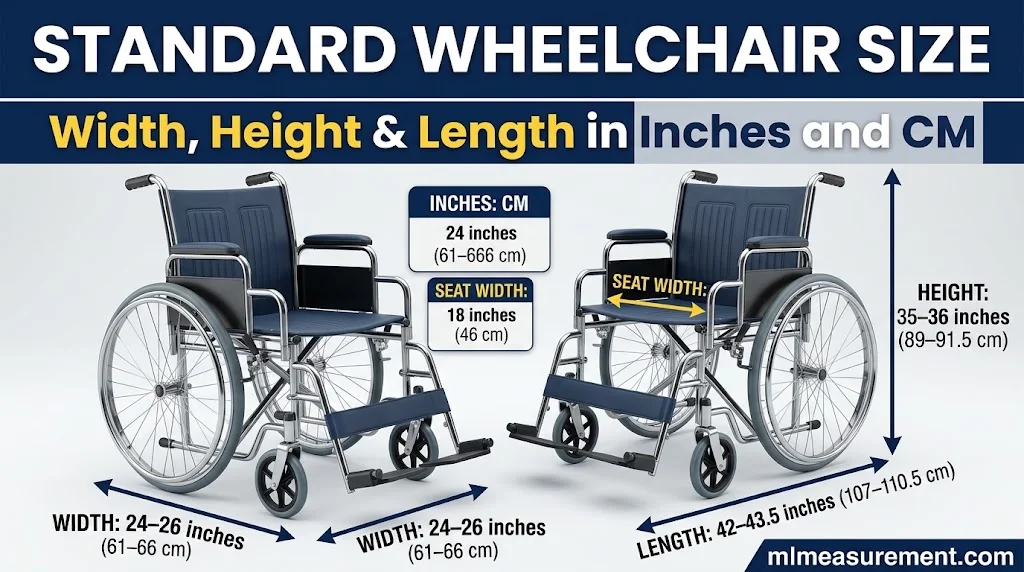

Standard Wheelchair Size in Inches and CM
What size is a standard size wheelchair? Dimensions.com lists a typical chair at 42 in long, 36 in high and 25 in wide. Retail specs for popular 18 in seat models land close to that.
| Measurement | Inches | CM |
|---|---|---|
| Overall width | 24–26 | 61–66 |
| Overall length (with leg rests) | 42–43.5 | 107–110 |
| Overall height | 35–36 | 89–91 |
| Folded width | 12–12.5 | 30–32 |
| Seat width | 18 | 46 |
| Seat depth | 16–18 | 41–46 |
| Seat height | 17.5–19.5 | 44–50 |
| Weight | 36–44 lb | 16–20 kg |
| Weight capacity | 250–300 lb | 113–136 kg |
These figures come from Drive Medical models such as the Cruiser III, which lists a 26 in width, a 35 in height, and a 12 in folded width.
The folded width is handy. A chair that folds to about 12 in slides into most car trunks and closets.

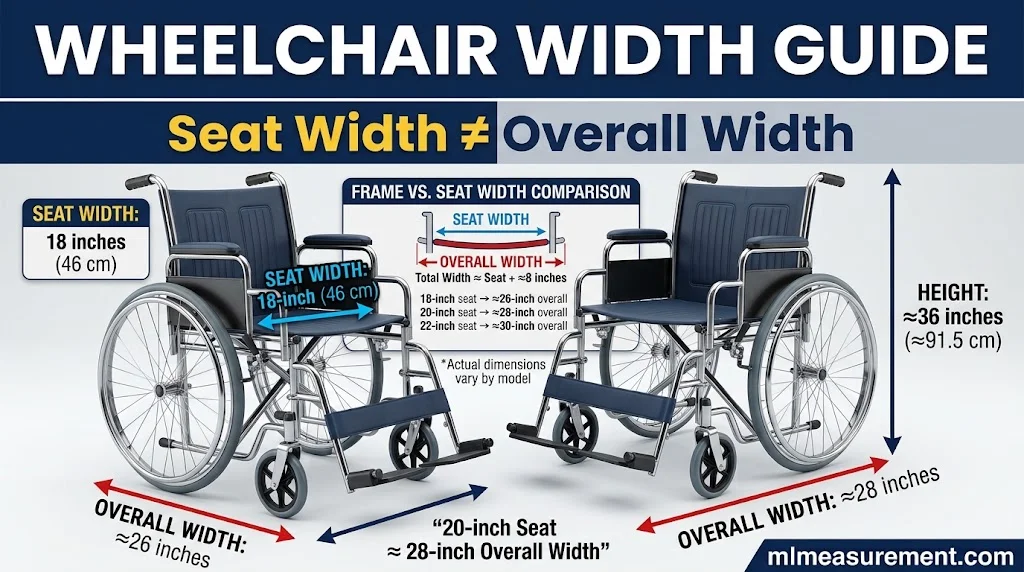

Wheelchair Seat Size vs Overall Width (18, 20 and 22 Inch Chairs)
Seat width is the space between the armrests. Overall width is the full width across the wheels. Listings often quote only one, so always check which.
Just as wheelchair dimensions help you understand width, height, and overall size, everyday products can also be measured using standard dimensions. For another practical size reference, explore White Claw can sizes and measurements to learn about can height, diameter, and dimensions in inches and centimeters.
On standard-frame chairs, overall width runs about 8 inches wider than the seat. Invacare’s Tracer EX2 chart shows this clearly.
| Seat width | Overall width (inches) | Overall width (cm) |
|---|---|---|
| 16 in (41 cm) | 24–24.5 | 62 |
| 18 in (46 cm) | 26–26.5 | 66–67 |
| 20 in (51 cm) | 28–28.5 | 71–72 |
| 22 in (56 cm) | 30–31 | 76–79 |
| 24 in (61 cm) | 32–32.5 | 82–83 |
How big is a 20 inch wheelchair? The seat is 20 in (51 cm) wide. The whole chair is about 28 in (71 cm) wide, around 42 in long with leg rests, and about 35–36 in tall. It folds to roughly 12 in wide.
What is the total width of a 22 inch wheelchair? About 30–31 inches (76–79 cm) when open. Drive’s 22 in Sentra EC is 30 in open and 12.5 in folded, with a 450 lb capacity.
Transport chairs with small rear wheels run narrower, about 4–7 inches wider than the seat. A Karman 18 in transport chair, for example, is 24.5 in wide open and weighs 24 lb.

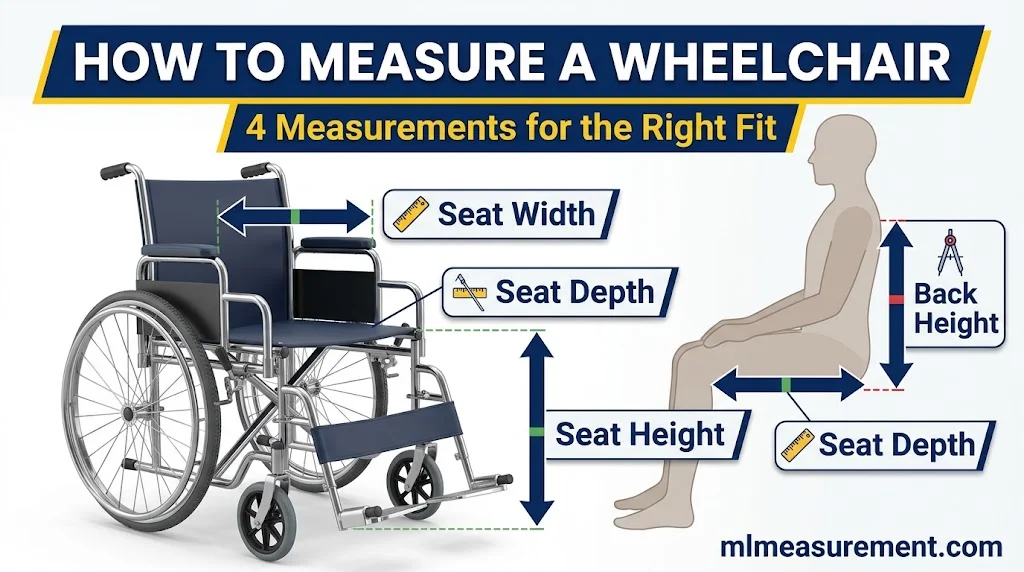

Correct Measurements for a Wheelchair
What are the correct measurements for a wheelchair? Four body measurements decide the fit. Freedom Mobility Solutions lists them this way:
- Seat width: Measure across the widest part of the hips while seated.
- Seat depth: Measure from the back of the buttocks to the back of the knee, then subtract 2 inches.
- Seat height: Measure from the heel to the back of the knee, in the shoes the person normally wears.
- Back height: Measure from the seat up to the top of the shoulders.
Use a straight edge on each side of the hips instead of a tape around the body. A tape reads too wide.
Chairs outside the usual range, such as bariatric and child sizes, often need custom fitting. An occupational therapist or equipment provider can confirm the best size.

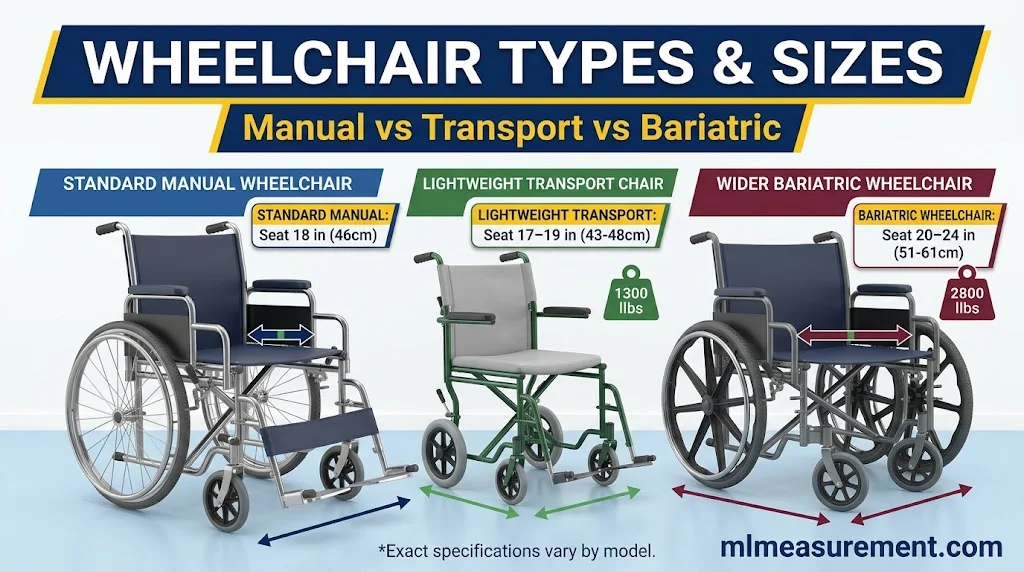

Wheelchair Dimensions by Type: Manual, Transport and Bariatric
| Type | Seat width | Overall width | Weight capacity |
|---|---|---|---|
| Standard manual | 18 in (46 cm) | 24–26 in (61–66 cm) | 250–300 lb |
| Transport chair | 17–19 in | 24–25 in (61–64 cm) | about 250 lb |
| Bariatric manual | 20–24 in (51–61 cm) | 28–32.5 in (71–83 cm) | 450–500 lb |
Power chairs vary widely by model, so check each spec sheet.
Now check the doors. ADA rules call for 32 inches (81 cm) of clear door width, per the Long Beach City College building codes text. A 36 in door is the better size, as University of Missouri Extension notes.
Other ADA numbers:
- Hallways: at least 36 in (91 cm) wide.
- Turning space: a 60 in (152 cm) circle, or a T-shaped space.
- Ramps: a maximum slope of 1:12, which means 1 in of rise needs 12 in of ramp.
Here is how this affects a chair purchase. A 22 in chair at 30–31 in wide clears a 32 in door by only 1–2 inches. A 24 in chair, at 32+ in wide, does not clear it at all.
FAQs
What size is a standard size wheelchair?
About 26 in (66 cm) wide, 42 in (107 cm) long and 35–36 in (89–91 cm) tall, with an 18 in (46 cm) seat.
What are the correct measurements for a wheelchair?
Measure seat width, seat depth, seat height and back height. Seat width is hip width, and seat depth is hip to back of knee minus 2 in.
How big is a 20 inch wheelchair?
It has a 20 in (51 cm) seat. Overall it is about 28 in (71 cm) wide and 42 in (107 cm) long.
What is the total width of a 22 inch wheelchair?
About 30–31 in (76–79 cm) when open and around 12.5 in (32 cm) folded.
Conclusion
A standard wheelchair is about 26 in wide and 42 in long, and overall width is roughly the seat width plus 8 in. Measure the person and every doorway before you buy.
